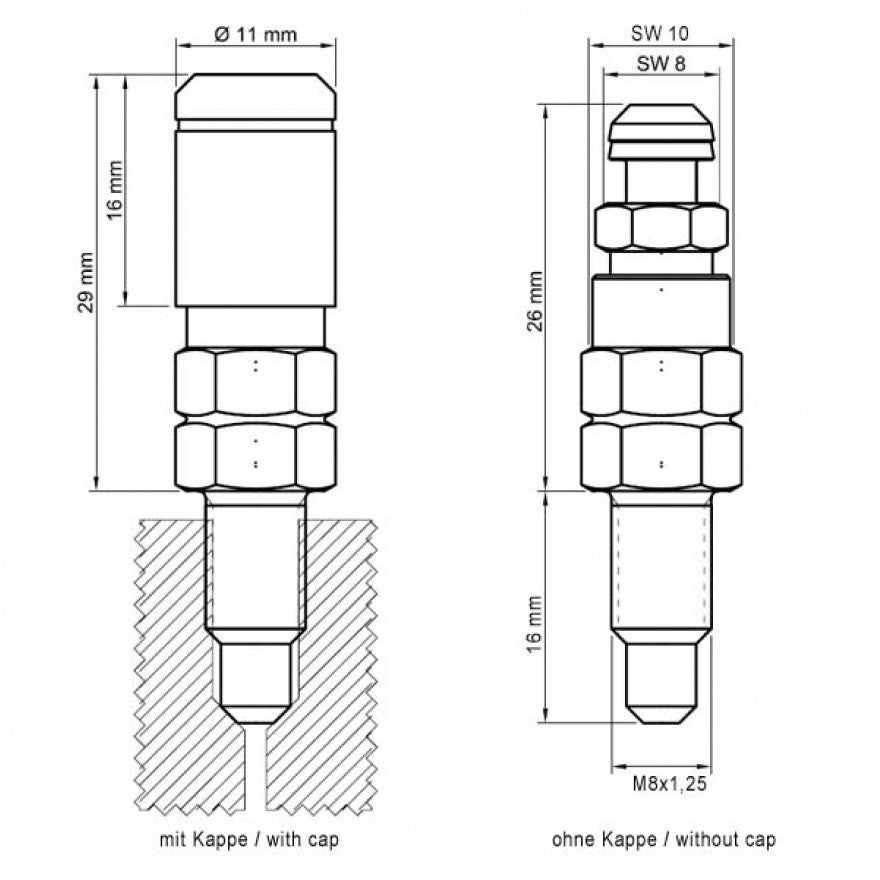

M8x1.25 (thread length 22mm), EXTRA length ( YAMAHA Right Side )
M8x1.25 (thread length 16mm), standard length
Please do not forget to order the stahlbus dust cap, too. Only this protects the inner O-ring. The original rubber cap are not only ugly, but also simply too short.
Innovative quick bleeder valve for a safe, clean and quick bleeding and filling of hydraulic brakes and clutches of all vehicles. Unassisted single-hand operation.
You can bleed your brakes easily on your own!
After the conventional bleeder screw was removed: Installation of the stahlbus® -bleeder valve at the brake cylinder.
Step 2 2
The upper part of the valve is opened with a half turn.

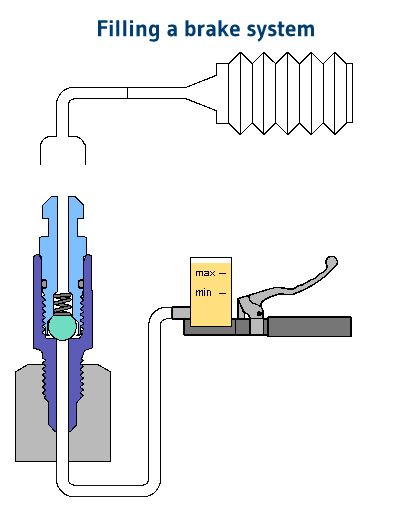

Push or pull your brake, clutch lever until all air bubbles are evacuated out of the breather tube.

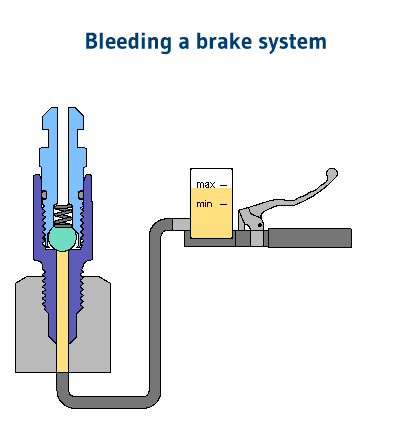

Pressure is created by either the brake pedal or hand lever, the stahlbus® check valve opens and the fluid is evacuated. When pressure is released the check valve closes, eliminating the possibility of air getting into the system.
After you’ve changed the fluid and bled the system, it is simply a half turn to close and replace the cap and you’re done!
