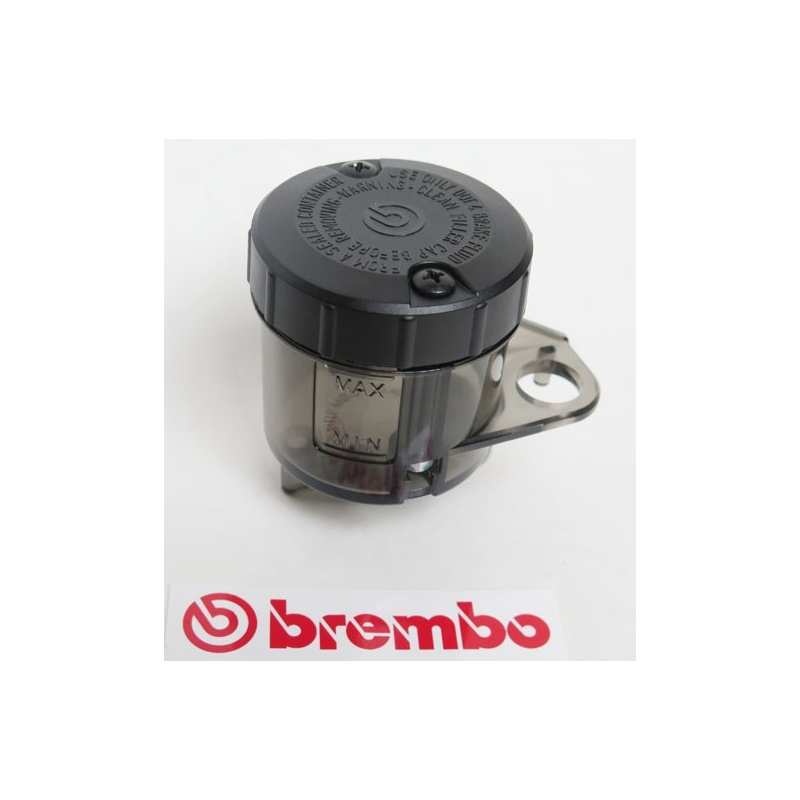

BREMBO Reservoir - SMOKE - Size 45ml, XL

• Color : SMOKE

• 90 Degree Mount for Fluid Line

• Extra Large Reservoir volume : 45ml.
• Compare to smaller 15ml and 30ml reservoir volumes.
• Great for Custom Street Applications where a small 15ml Racing Reservoir is to small.
• Endurance race teams use the 45ml XL size to allow full use of brake pads without adding fluid to reservoir.
• Universal Fit:
• No Mounting Kit provided with reservoir.
• Customer will need to fabricate a bracket to mount reservoir
• Tubing Fitting Size: 6mm Tubing

• Note: No tubing included with Reservoir.

Cap Diameter (D1) : 54.0mm ( 2.125 in )
Cup Diameter (D2) : 49.5mm ( 1.95 in )
Cup Height (H1) : 52.8mm ( 2.08 in )
Overall Height (H2) : 68.3mm ( 2.69 in)
Cup Volume: 45ml (1.5 fluid oz)
