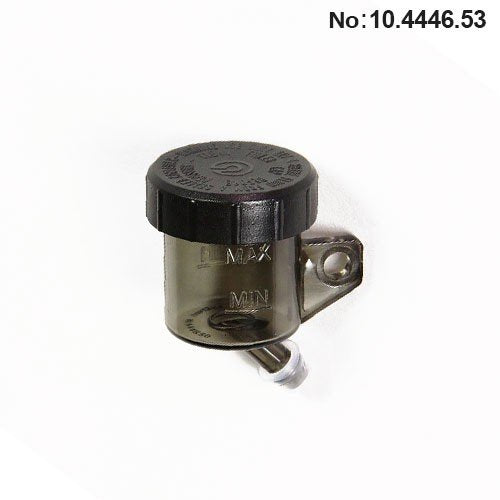

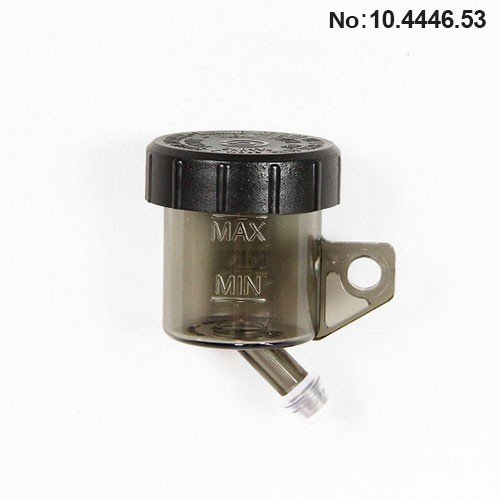

BREMBO Reservoir - SMOKE - Size 15ml, Small, Angled

• color : SMOKE

• Racing Reservoir volume : 15ml.
• Racing applications can benefit from using this compact 15ml reservoir.
• Greater flexibility in mounting locations.
• Increased clearance in tight racing cockpit and hand control areas.
• Universal Fit:
• No Mounting Kit provided with reservoir.
• Customer will need to fabricate a bracket to mount reservoir
• Tubing Fitting Size: 6mm Tubing
• Note: No tubing included with Reservoir.

Cap Diameter (D1) : 38.4mm ( 1.51 in )
Cup Diameter (D2) : 31.0mm ( 1.22 in )
Cup Height (H1) : 38.9mm ( 1.53 in )
Overall Height (H2) : 55.8mm ( 2.20 in)
Cup Volume: 15ml (0.5 fluid oz)
